J230/J430 Personal
The J230 & J430 are the perfect companions for anyone looking to enjoy the serene skies.Cruise Speed
120 KTS
Useable Weight
230-390 KG
Fuel Capacity
135 L
Fuel Consumption
23-29 LT/HR
Max Range
675 NM

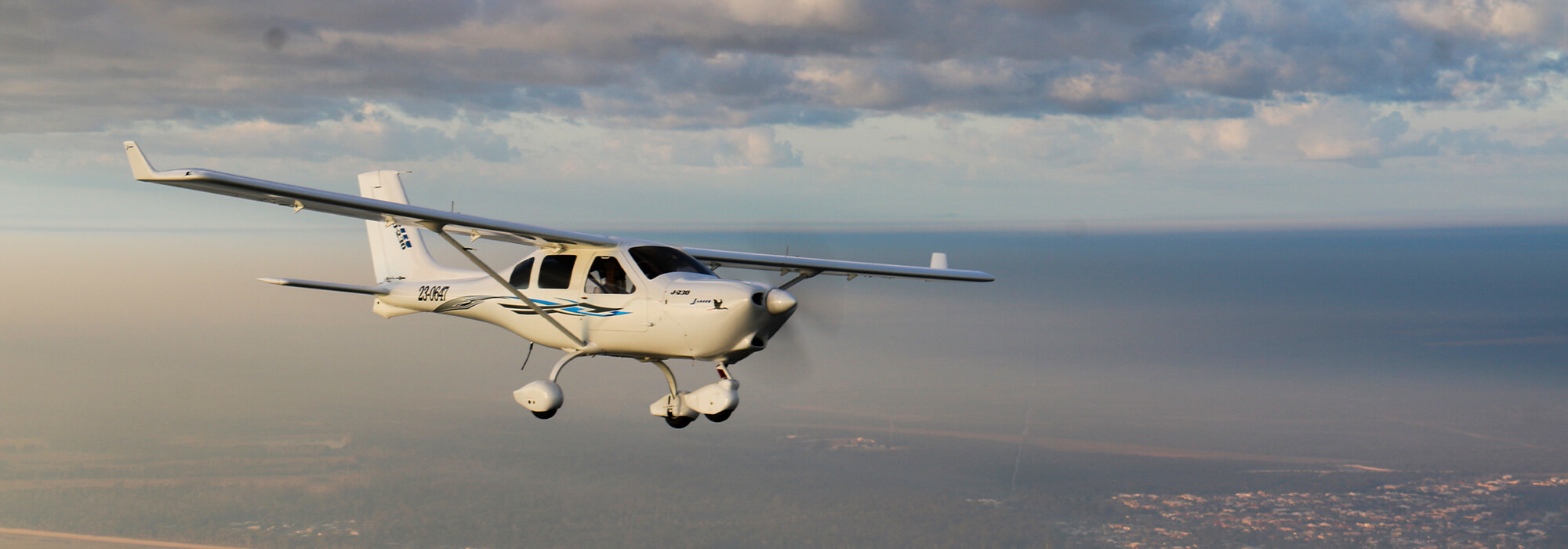

Your personal aircraft
Don’t want to share? The J230/J430 puts owning your own personal aircraft within reach. Two up, with a spacious interior and sizable cargo area, it’s the most useful aircraft going around.
Ample endurance at 120kts cruise, you can get out and about, just as comfortably on a dirt or grass strip as on acres of tarmac. The Dynon glass cockpit gives you all the advantages of modern technology and you can fill your panel with more avionics than a fighter pilot, if that’s your thing.
While it is simple to fly and operate, you will enjoy the challenge of flying the J230/J430 as precisely as those who have mastered the art.

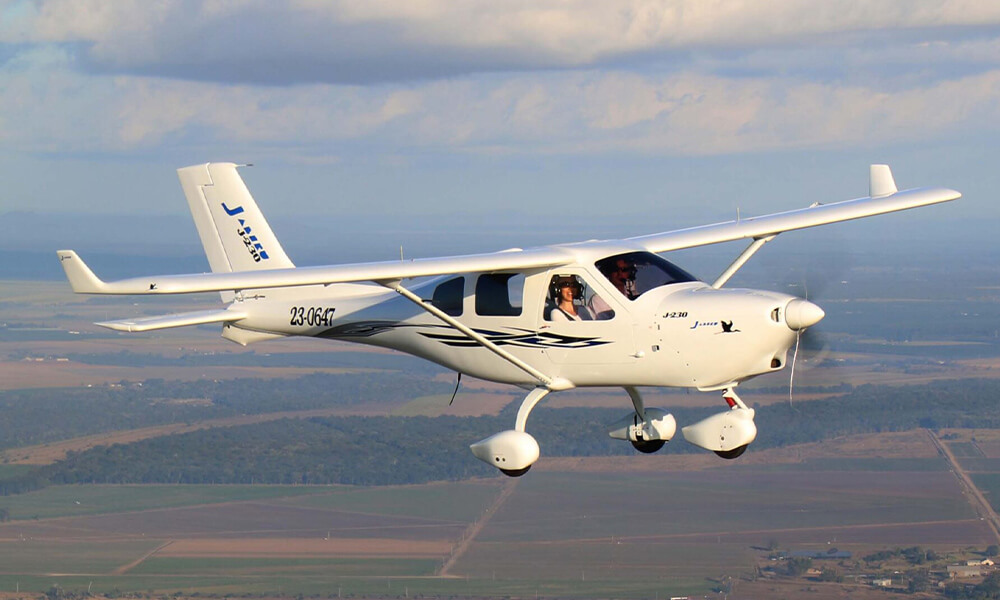

Safety
Crafted with quality materials, Jabiru aircraft are built to last, with many still flying reliably after decades of use. Powered by the GEN4 engine, known for its dependable performance, the J230/J430 inspires confidence on every flight. And, in the rare event of an emergency, the reinforced safety pod provides proven protection for the crew.

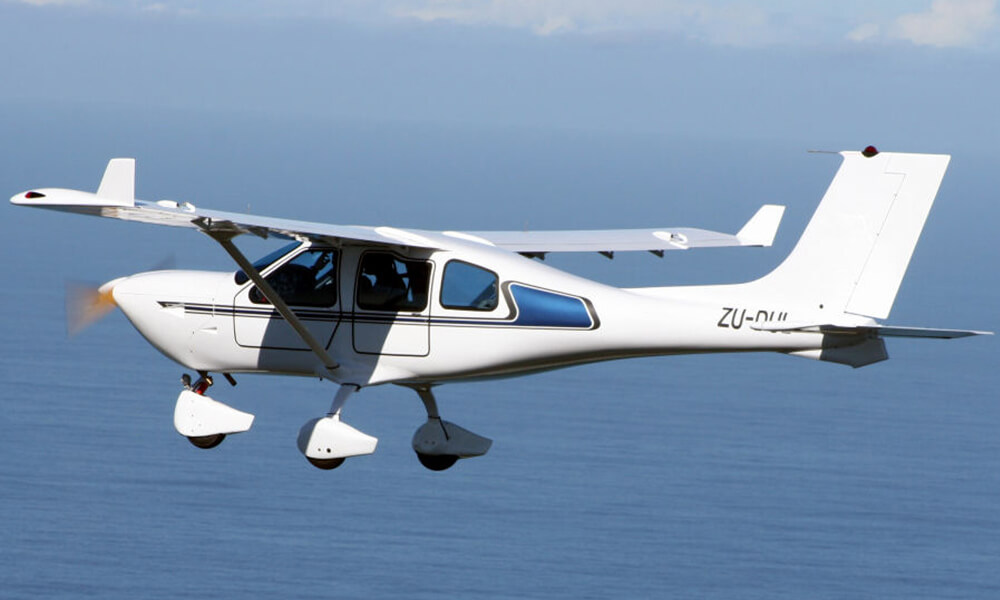

Affordability
At Jabiru, we’re dedicated to making every dollar count. Beyond its attractive purchase price, the J230/J430 are engineered for minimal operating costs, ensuring long-term affordability for owners and operators alike.
At Jabiru, we’re dedicated to making every dollar count. Beyond its attractive purchase price, the J230/J430 are engineered for minimal operating costs, ensuring long-term affordability for owners and operators alike.
With a straightforward, durable design, the J230/J430 keeps maintenance costs low, and we’re committed to providing accessible, affordable spares and repairs. And with fuel consumption at just 25 litres per hour, the J230/J430 helps you maintain highly competitive hourly rates without sacrificing quality.
Propulsion
At Jabiru, we believe keeping things in-house means keeping costs down without compromising quality. That’s why the J230/J430 features our own 3300 GEN4 engine—a 6-cylinder, 90 kW (120 hp) powerhouse that delivers reliable performance with minimal maintenance needs. Built to Jabiru’s exacting standards, this engine ensures consistent power and long-term affordability.
Paired with a Jabiru-designed 2-blade, fixed-pitch composite scimitar propeller, the J230/J430 maximizes efficiency and enhances fuel economy, helping to keep operational costs at a minimum. Together, the GEN4 engine and propeller create a streamlined, high-quality system that reflects our commitment to cost-effective, dependable aviation.
Specifications and Performance
Jabiru |
J230-D |
J430-D |
---|---|---|
Category | Light Sport Aircraft | Experimental |
Design Standard | ASTM F2245 | ASTM F2245 |
Engine | Jabiru 3300, 6 cylinder, 90 kW, 120 hp | Jabiru 3300, 6 cylinder, 90 kW, 120 hp |
Propeller | 2 blade, fixed pitch, composite scimitar prop | 2 blade, fixed pitch, composite scimitar prop |
Cruise speed | 120 knots TAS | 120 knots TAS |
Stall speed | VS0 (clean) 45 knots VS1 (full flap) 40 knots |
VS0 (clean) 52 knots VS1 (full flap) 48 knots |
Climb rate | 1,000 ft per min | 800 ft per min |
Max cross wind | 14 knots | 14 knots |
Fuel capacity | 135 litres | 135 litres |
Fuel consumption | 23-29 litres/hr | 23-29 litres/hr |
Range | 675 nm | 675 nm |
Endurance | 5.6 hours | 5.6 hours |
Max takeoff weight | Light Sport Aircraft 600 kg Experimental 760 kg |
760 kg |
Empty weight | 390 kg | 400 kg |
Usable weight | Light Sport Aircraft 210 kg Experimental 370 kg |
360 kg |
