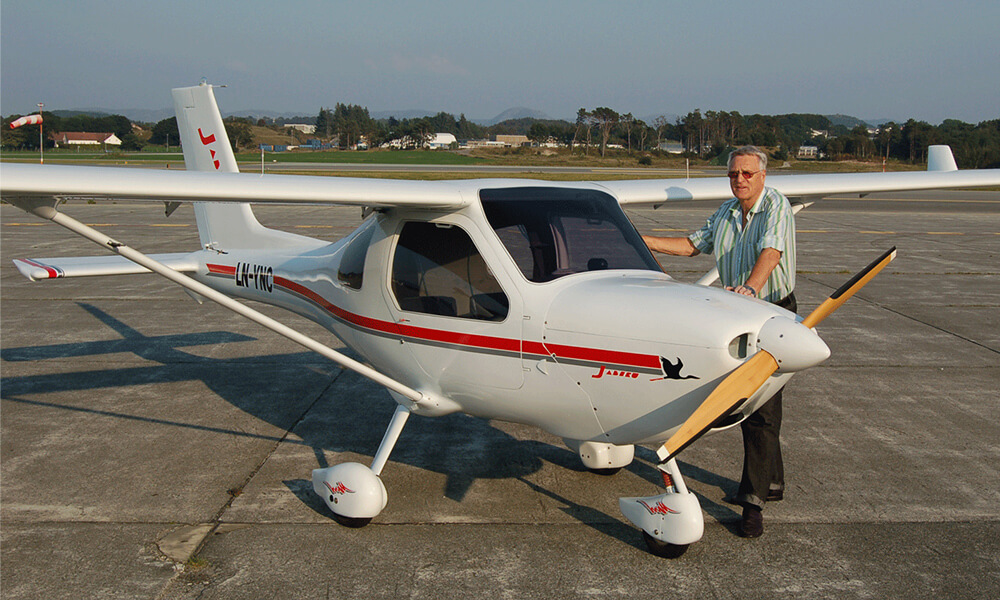

J170 – The Worker
Built for the toughest jobs, the J170 is the ultimate rugged workhorse.Cruise Speed
100 KTS
Useable Weight
245 KG
Fuel Capacity
135 L
Fuel Consumption
16-19 LT/HR
Max Range
850 NM
The Worker
But the J170 is more than just a joy to fly—it’s a smart business asset. With the lowest operating costs in the industry, this aircraft brings true value, allowing flight schools and operators to maintain a competitive edge without sacrificing quality or safety. The J170 combines performance and affordability, making it a top pick for those serious about efficient, effective aviation.
Safety
Crafted with quality materials, Jabiru aircraft are built to last, with many still flying reliably after decades of use. Powered by the GEN4 engine, known for its dependable performance, the J170 inspires confidence on every flight. And, in the rare event of an emergency, the reinforced safety pod provides proven protection for the crew.
Affordability
With a straightforward, durable design, the J170 keeps maintenance costs low, and we’re committed to providing accessible, affordable spares and repairs. And with fuel consumption at just 17 litres per hour, the J170 helps you maintain highly competitive hourly rates without sacrificing quality.
Propulsion
Paired with a Jabiru-designed 2-blade, fixed-pitch composite scimitar propeller, the J170 maximizes efficiency and enhances fuel economy, helping to keep operational costs at a minimum. Together, the GEN4 engine and propeller create a streamlined, high-quality system that reflects our commitment to cost-effective, dependable aviation.
Specifications and Performance
Jabiru |
J170-D |
Category | Light Sport Aircraft |
Design Standard | ASTM F2245 |
Engine | Jabiru 2200, 4 cylinder, 60 kW, 80 hp |
Propeller | 2 blade, fixed pitch, composite scimitar prop |
Cruise speed | 100 knots TAS |
Stall speed | VS0 (clean) 45 knots VS1 (full flap) 40 knots |
Climb rate | 500 ft per min |
Max cross wind | 14 knots |
Fuel capacity | 135 litres |
Fuel consumption | 16-19 litres/hr |
Range | 850 nm |
Endurance | 8.5 hours |
Max takeoff weight | 600 kg |
Empty weight | 355 kg |
Useable weight | 245 kg |
